Client: MASSEY FERGUSON
PROJECT: RETAIL FIXTURE SYSTEM
Agency: ASM GROUP
SOFTWARE: Illustrator, Photoshop, FormZ
CATEGORY: TECHNICAL DOCUMENTATION
This custom fixturing system for Massey Ferguson had to be documented thoroughly as the final production was handled by a manufacturing vendor in China.

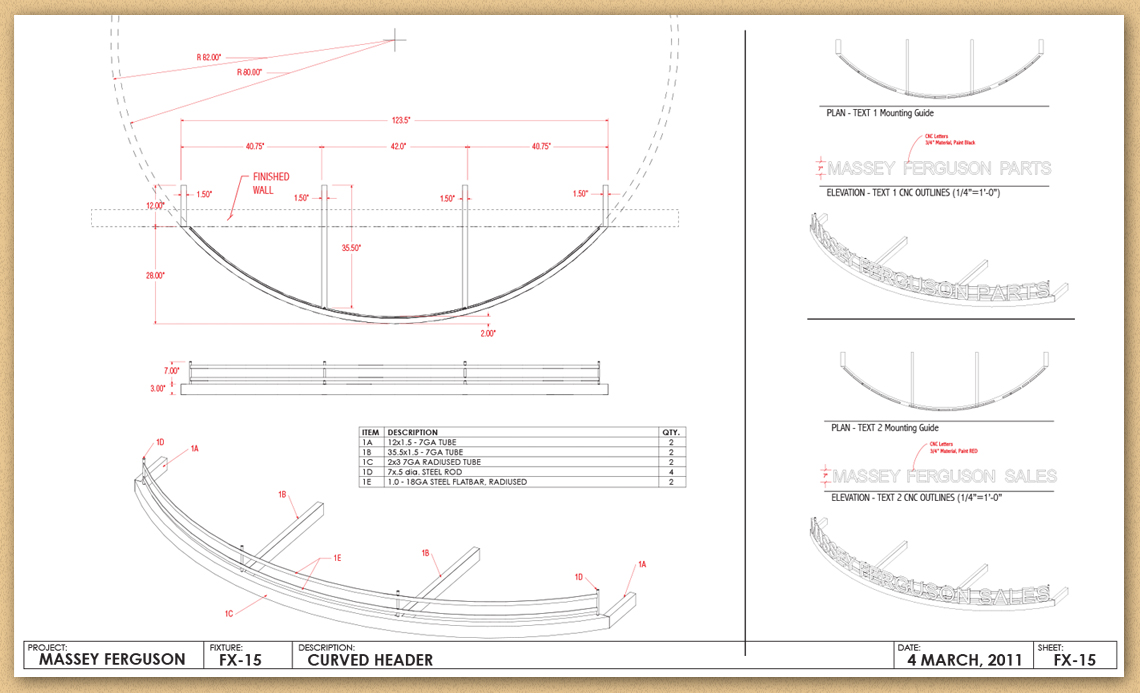

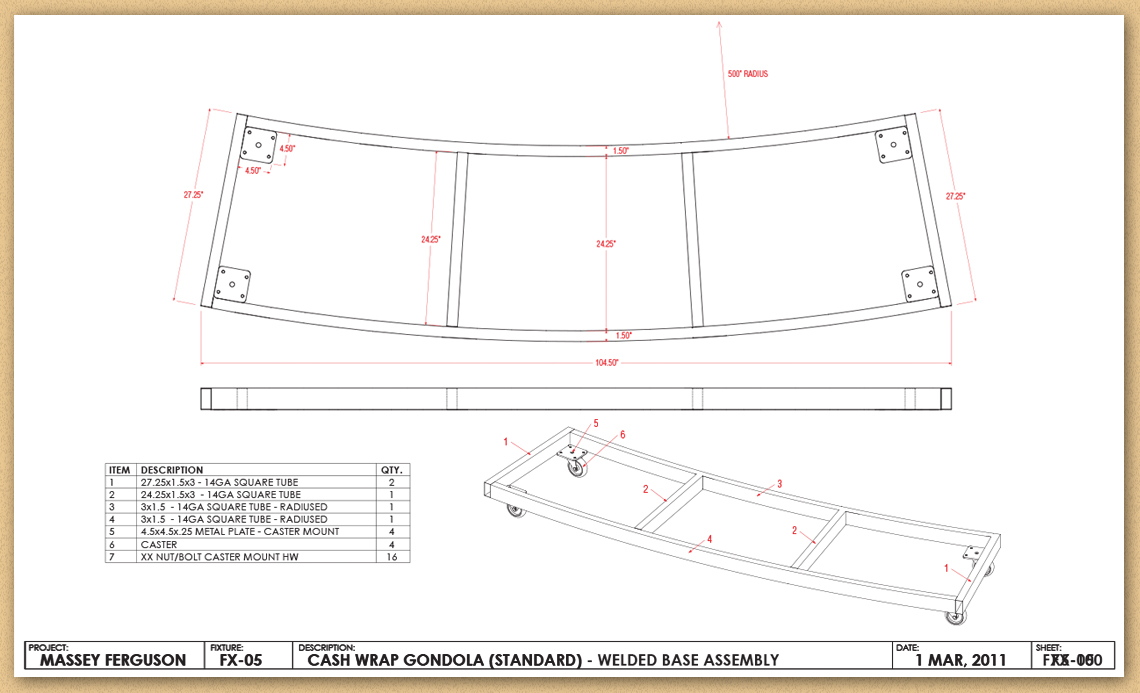

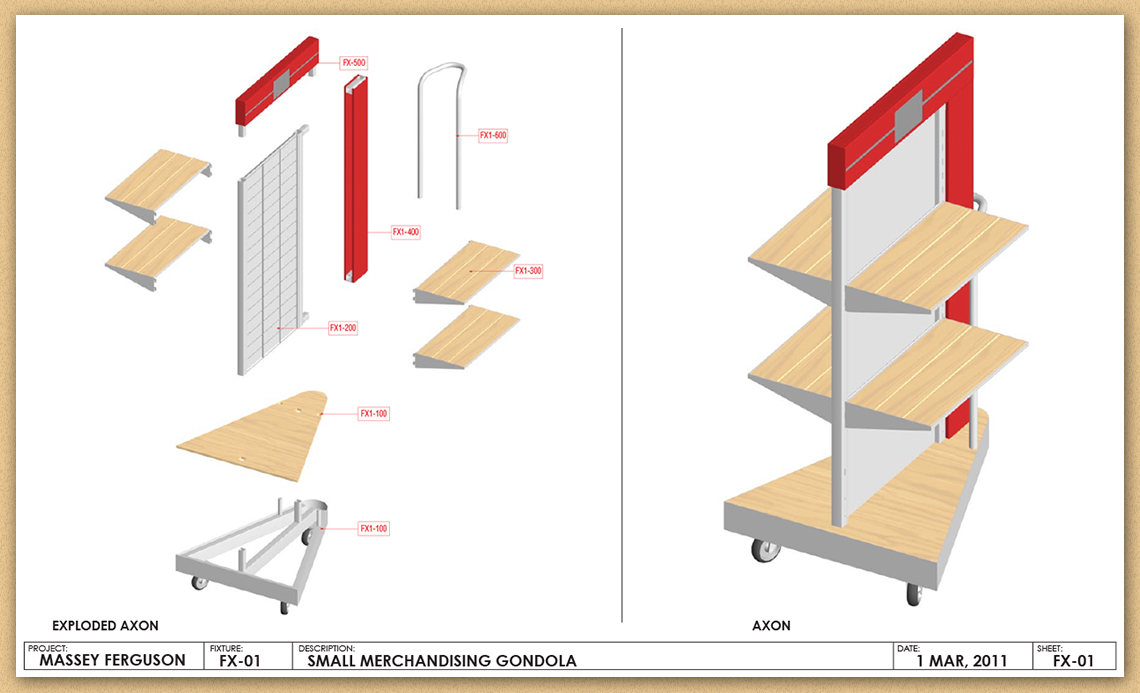

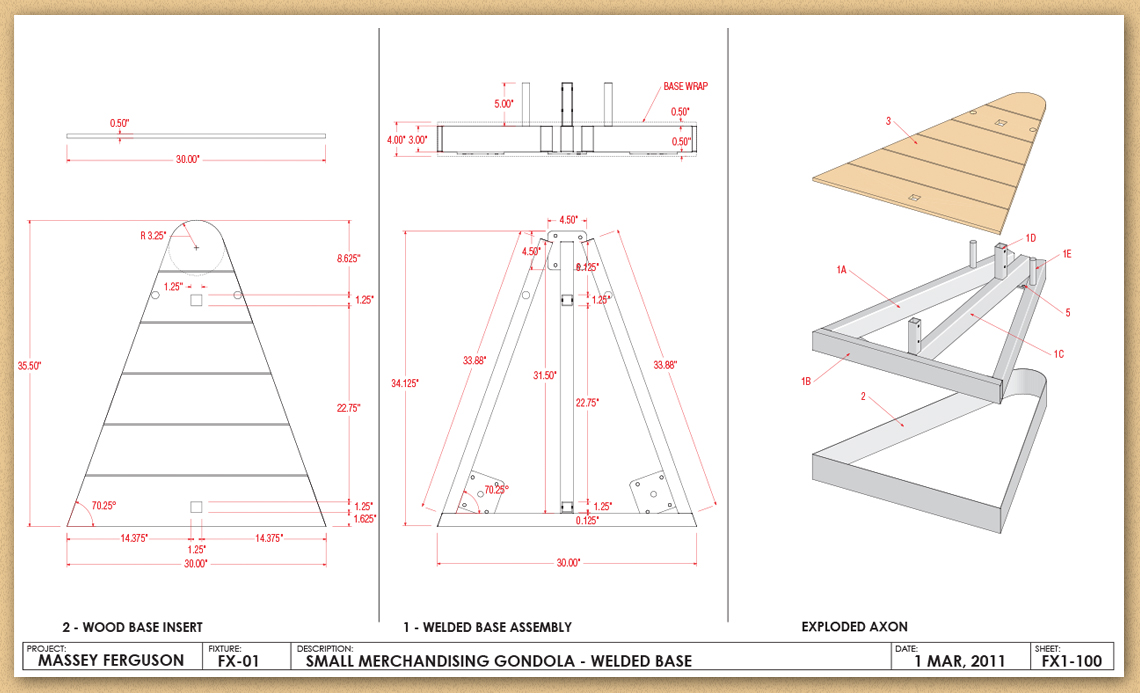

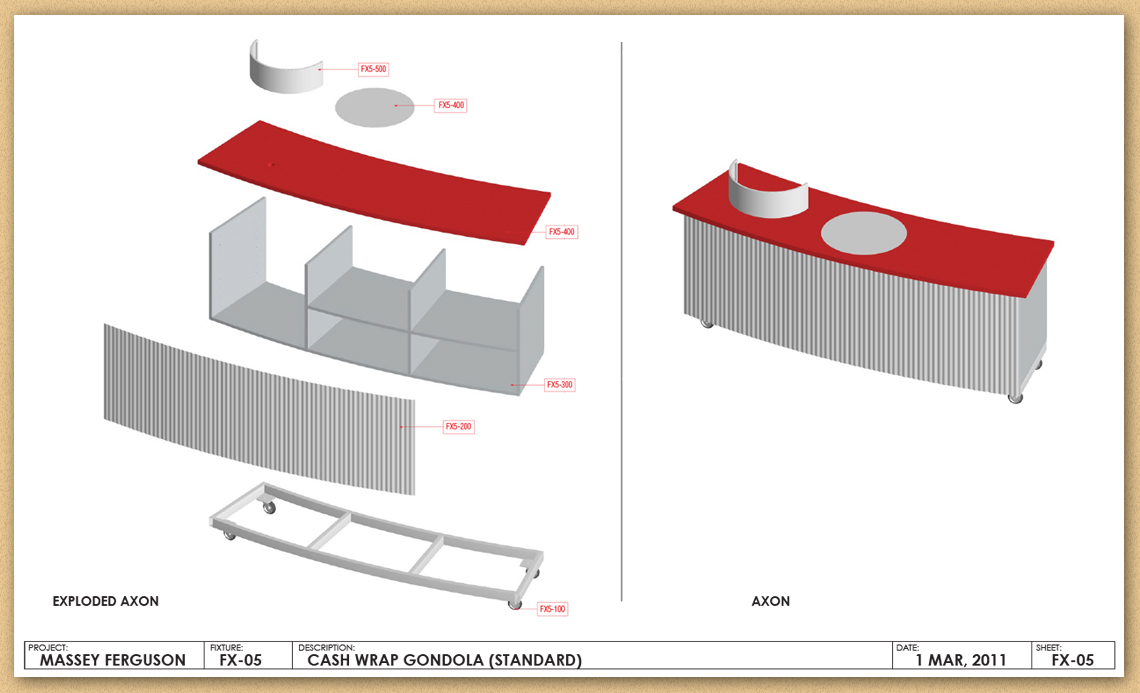

Detailed scale 3d models were created for each fixture, individually rendered, and imported into Illustrator to add production notes and specifications.
