Project Details

Client: SKYLINE DISPLAYS

PROJECT: MODULAR FIXTURE SYSTEM

SOFTWARE: Illustrator, InDesign, Excel, FormZ, Acrobat

CATEGORY: PRODUCTION

This project is a custom modular display system developed by Skyline Displays. There were twelve different systems total, for each of which I created detailed setup instructions.

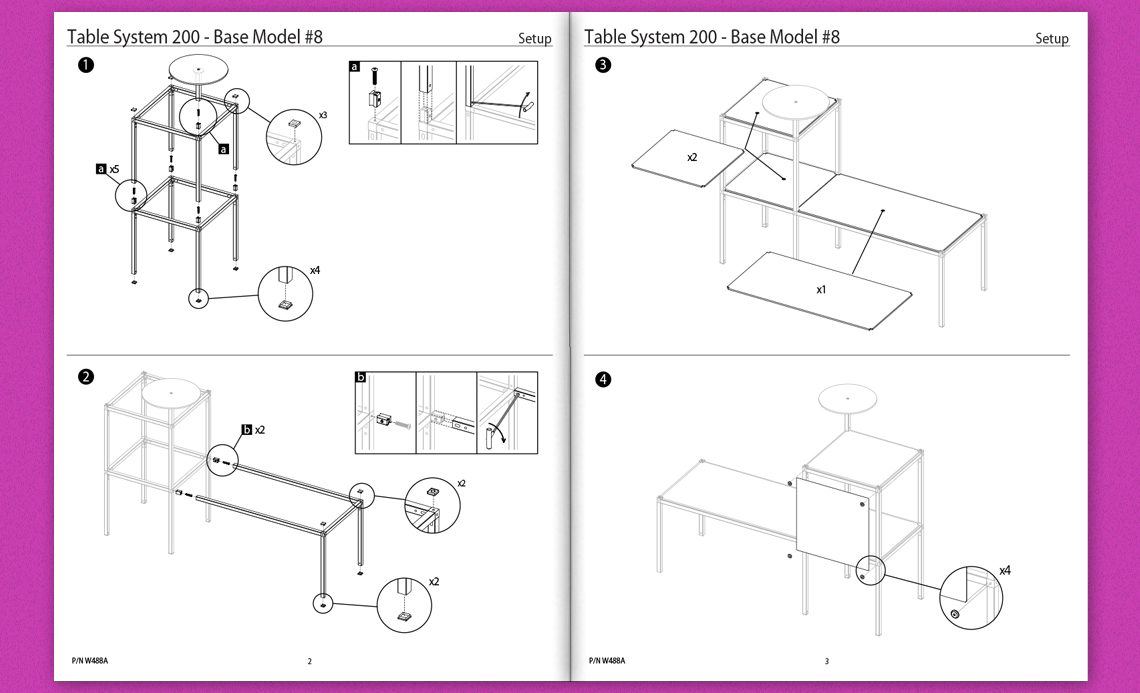

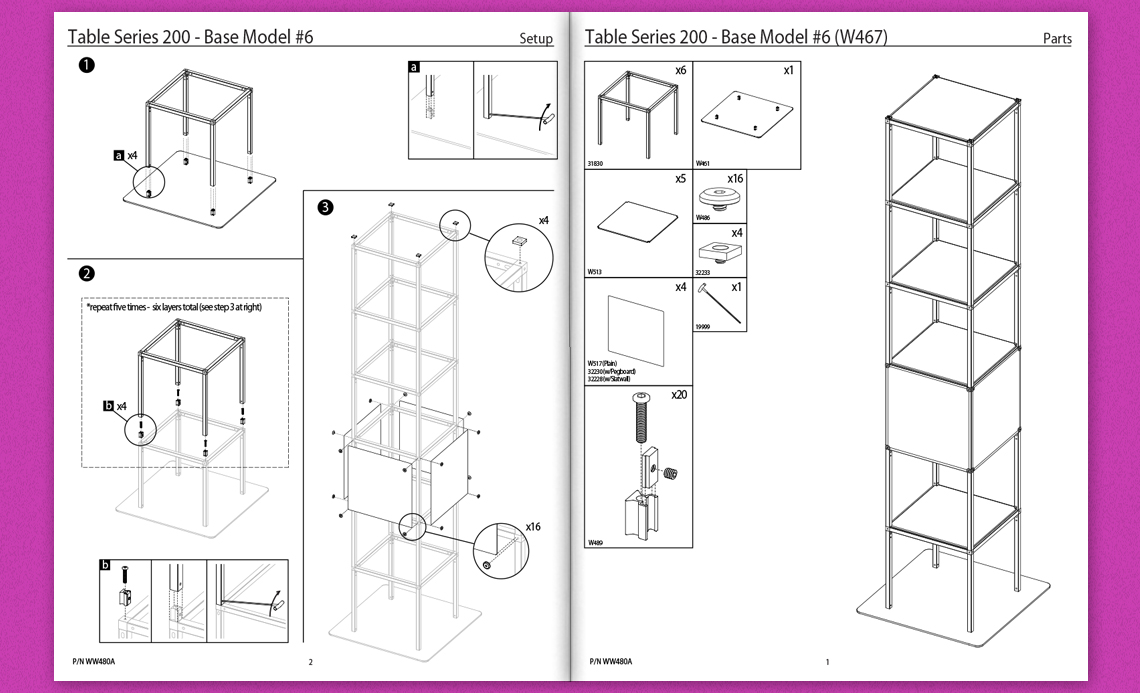

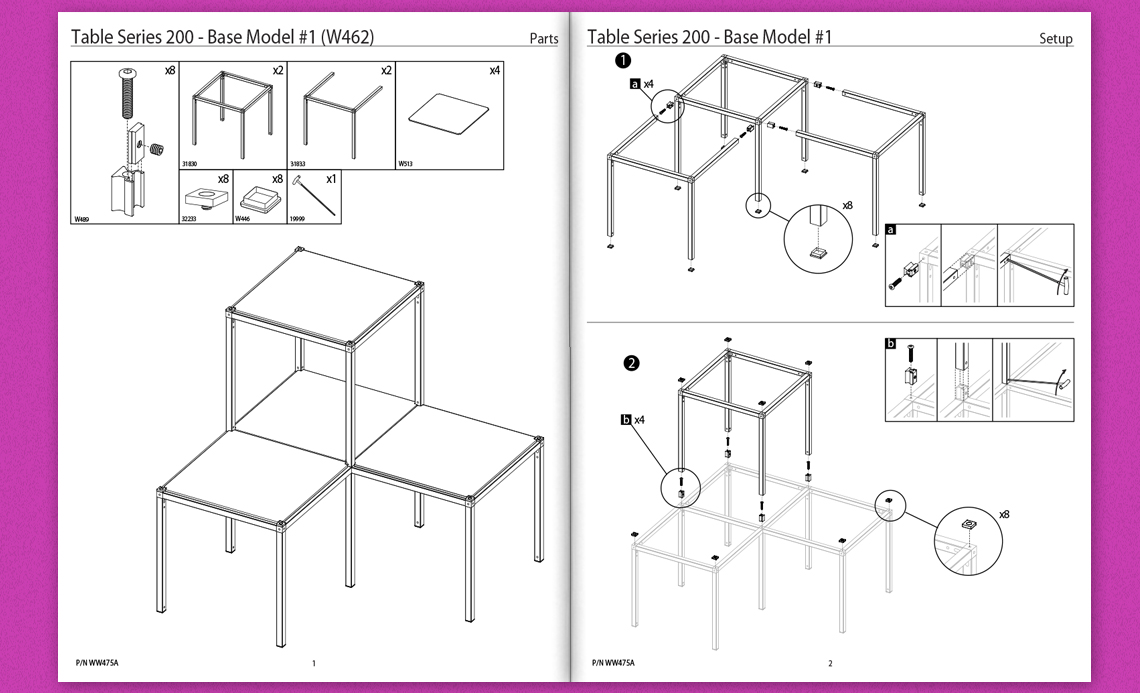

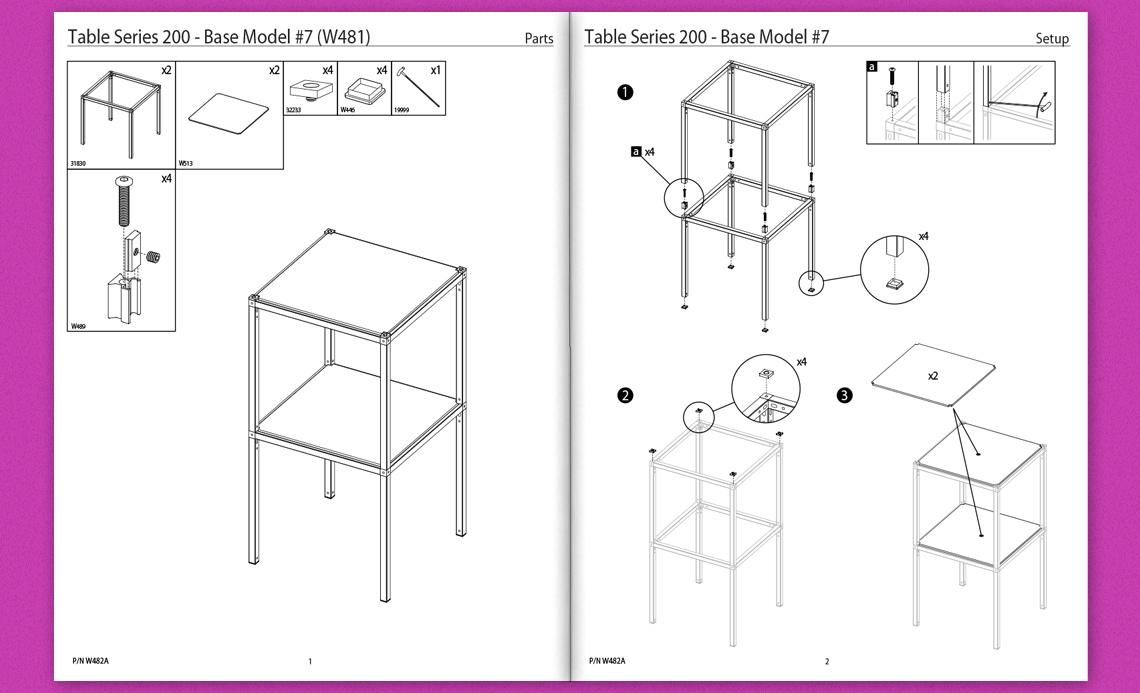

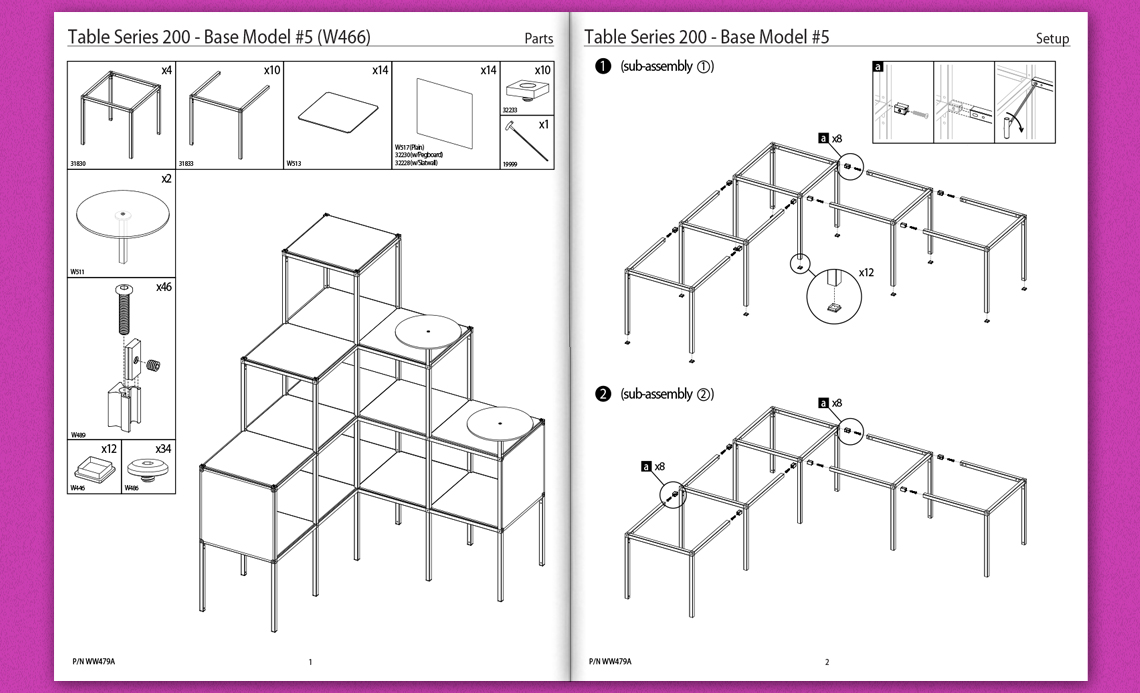

For each fixturing system, I imported Skyline's 3d models into FormZ and generated line-art renderings of each component piece, which I then imported into Illustrator.

Approaching the project this way allowed me to create a construction set of sorts. Using the point snap function with these individual components I was able to 'build up' each step of the instructions directly in Illustrator, without requiring multiple 3d renderings to be generated.
